Cygnus Heavy Duty Thickness Gauge

Cygnus Instruments have designed the Cygnus Heavy Duty ultrasonic thickness gauge for use in tough and demanding environments where a rugged construction is essential to accurately gauge corrosion measurement and determine metal thickness without having to remove protective coatings.

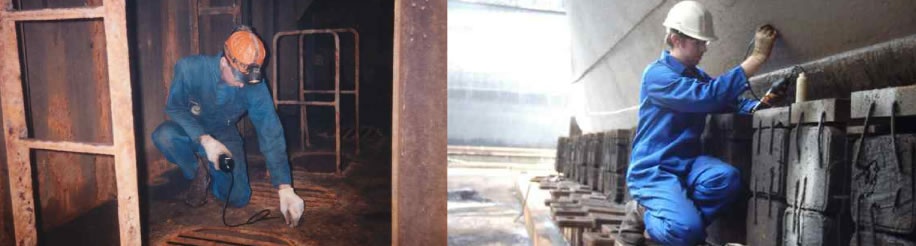

The Cygnus Heavy Duty is dirt resistant, dust resistant and water resistant. Its shock-proof construction takes into account the unstable environments in which corrosion thickness measurements and structural inspections are performed, resulting in a metal thickness gauge that is able to withstand accidental drops, bangs and knocks.

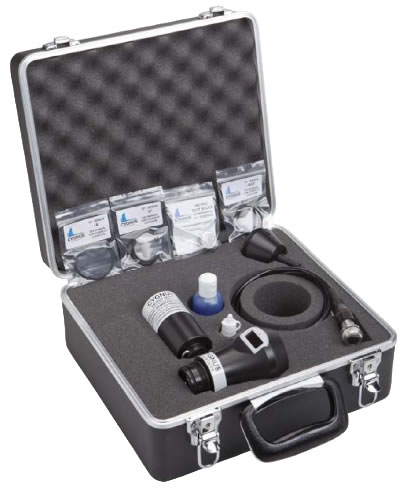

The Cygnus Heavy Duty is supplied ready to use as a complete kit in a protective carry case.

Heavy duty sealed unit - highly water / dirt / dust resistant
Rugged construction - shock proof
Stable calibration - linear accuracy - no zero adjustment
Self verification of the measurements to ensure accuracy
Various probe options
Displays sound velocity settings
Echo strength indicator to aid measurement
Bright LED display with polarised filter
Probe frequency selectable
Low battery warning
Metric / Imperial switchable.

Cygnus Heavy Duty, Ultrasonic Thickness Gauge

Benefits of Cygnus Multiple Echo

Measures remaining metal thickness on corroded and coated structures
All measurements are error checked using 3 return echoes to give repeatable, reliable results
Accepted by all major classification societies
Greatly reduces inspection time and costs
Echo strength indicator to aid measurement.

Materials	Sound velocities between 2000 and 7000 m/s (0.059 and 0.31 in/microsec) - covers virtually all common engineering materials
Measurement range in steel	3 mm - 250 mm (0.110" - 9.995") with 2.25 MHz probe 2 mm - 150 mm (0.065" - 6.000") with 3.5 MHz probe 1 mm - 50 mm (0.045" - 4.000") with 5.0 MHz probe
Accuracy	0.1 mm (0.005") when calibrated in accordance with Cygnus Instruments Calibration Procedures
Resolution	0.1 mm or 0.05 mm (0.005" or 0.002") (selectable)
Probes	Single crystal soft-faced compression 6 mm (1/4") - 5 MHz 13 mm (1/2") - 2.25, 3.5 or 5 MHz 19 mm (3/4") - 2.25 MHz (Lower frequency probes offer better penetration on heavy corrosion/coatings)
Protection	IP65 & IP67
Warranty	3 years on Gauge, 6 months on probes

Kit Contents
Instrument, heavy duty remote 2.25 MHz x 13 mm (1/2") diameter probe, battery pack, spare membranes and ‘O’ rings, steel test block, calibration trim tool, operational manual and carry case

Cygnus Ultrasonic Thickness Gauge
