The Cygnus DIVE Mk2 underwater thickness gauge provides easy viewing from all angles for the diver and his camera, even in poor visibility. This wrist-mountable ultrasonic thickness gauge has been designed for the professional diver and can be worn on the forearm, providing an invaluable free hand whilst performing thickness surveys underwater.
This underwater thickness gauge is rated to a depth of 300 m, it delivers accurate meter readings, is reliable and simple to use. The Cygnus DIVE underwater thickness gauge can measure through corrosion and through coatings up to 20mm thick (when in ‘Deep-Coat’ mode) using Single Crystal probes. The introduction of Twin Crystal probes for use with the gauge in single-echo mode offers flexibility for certain specific situations where there are no protective coatings. These applications include surfaces with extreme front and back wall corrosion, and highly attenuative materials such as cast iron and anchor chain links.
As with all Cygnus products, the Cygnus DIVE Mk2 has been designed for easy operation, and with only two buttons to operate, provides quick and easy menu navigation using just one hand.
The new CygLink v4 software offers a wide range of options for recording and displaying measurements.
-
Wrist mountable giving the diver a free hand
-
Large, brightly coloured AMOLED display, highly viewable by diver and camera in poor visibility
-
A-Scan display to assist with measurement verification
-
Auto-Log Data Logging - option, no log button to press - stores up to 5,000 measurements with A-Scans
-
Multiple Echo means no need to remove protective coatings up to 20 mm thick
-
Error-checked Multiple Echo measurements to ensure genuine, verified measurements are displayed
-
Deep Coat mode to measure through coatings up to 20 mm thick
-
Single Echo mode with Twin Crystal probes
-
Probes are connected to the DIVE with a coiled double jacket cable which will extend up to 1 metre
-
Pressure tested to 300 metres
-
Rechargeable Lithium-Ion battery giving up to 11 hours continuous operation.
| Display |
2.8” quarter VGA colour AMOLED (320 x 240 pixels)
Large clear thickness measurement (15 mm high numbers), viewable from all angles
A-Scan display with automatic X axis
Battery level, signal strength, probe type, velocity
Measurement mode and units indication |
| Battery |
Single 3.6V Li-ion 8.2 W battery
11 hours continuous measurement
Low battery warning ‘alert’ message |
| Measurement Modes |
Multiple Echo (three back-wall echoes) using Single Crystal (zero-degree) probes - automatically
Modes
ignores surface coatings and measures only metal thickness
Single Echo (first back-wall echo) using Twin Crystal probes |
| Deep Coat |
In Multiple Echo mode, allows measurement to be made through thicker coatings of
suitable materials (>20 mm) |
| Probes |
Single Crystal probes:
2.25 MHz 13 mm (standard) S2C
2.25 MHz 19 mm S2D
3.5 MHz 13 mm S3C
5.0 MHz 6 mm S5C
Twin Crystal probes:
2.0 MHz 13 mm x 2 (for cast irons etc.) T2C
5.0 MHz 8 mm x 2 (standard) T5B |
| Measurement Ranges |
Multiple Echo (through coatings) with
Single Crystal probes:
2.25 MHz = 3.0 to 250 mm
3.5 MHz = 2.0 to 150 mm
5.0 MHz = 1.0 to 50 mm
Single Echo with Twin Crystal probes:
5.0 MHz = 1.5 to 50 mm (in steel)
2.0 MHz = 2.5 to 150 mm (in steel) |
Please Contact us for details & prices. |
|
Benefits of Cygnus Multiple Echo
- Measures remaining metal thickness on corroded and coated structures
- All measurements are error checked using 3 return echoes to give repeatable, reliable results
- Accepted by all major classification societies
- Greatly reduces inspection time and costs
- Echo strength indicator to aid measurement.
With Multiple Echo, readings are taken by measuring the time
delay between any three consecutive backwall echos. The time of
T1 (coating thickness) is ignored. The times of T2 and T3 are
equal to the time that it takes to travel through the metal. Only by
looking at three echoes can the measurements be automatically
verified (where T2 = T3).

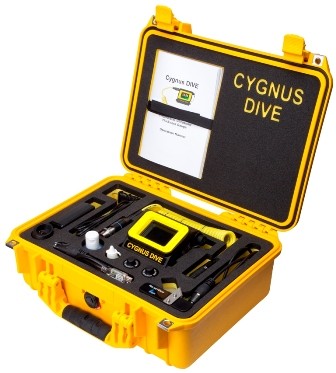

Cygnus DIVE Kit Contents
Cygnus DIVE gauge
2 rechargeable batteries
Fast charger
Multiple Echo (through coating) probe (2.25 MHz 13mm)
User manual
Spare membranes
Membrane key
Test block
Surface and membrane couplant
Cygnus DIVE Options
Data logging
CygLink Surface Display & Control Kit

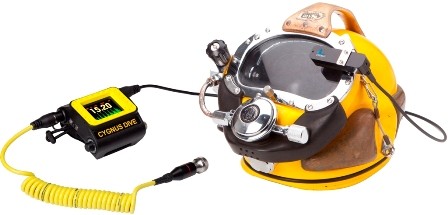

Helmet display
Remote display and video overlay
|
