Cygnus 2 Hands Free Ultrasonic Thickness Gauge |

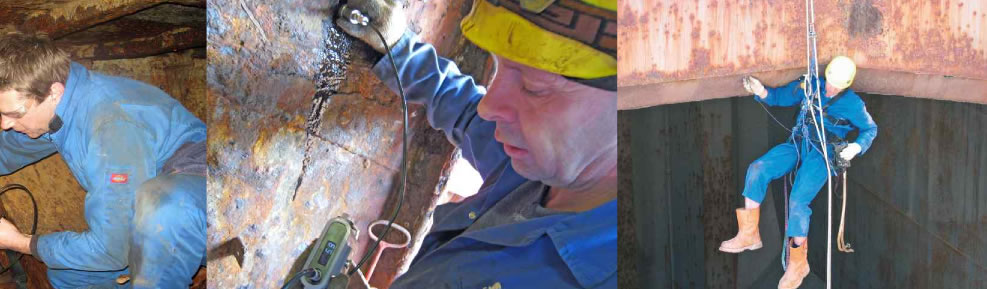

The Cygnus 2 Hands Free from Cygnus Instruments is the smallest, lightest and most durable through coating multiple echo ultrasonic thickness gauge available. Designed to measure metal thickness in rope access or belt mounted applications where the end-mounted organic LED display can be easily read whilst taking thickness measurements. The Cygnus 2 Hands Free is supplied ready to use as a complete kit in a protective carry case.
- Organic LED multi-functional display with improved readability in all lighting conditions
- Battery life increased by 50%
- Rugged probe cable design for superior flexibility
- Hands free operation: Belt/harness clip and neck strap included
- Light, rugged, small, shock-proof within IP65 & IP67 sealed aluminium enclosure
- Protective silicone sleeve offers maximum protection and versatility
- Simple keypad operation
- All measurements are error checked using 3 return echoes to give repeatable, reliable results
- Gauge senses probe type and automatically adjusts settings for optimum performance
- Accepted by all major classification societies
- Single crystal probe to ensure accurate measurements on curved and heavily corroded back walls
- Echo strength indicator to aid measurement
- Calibration to a known thickness or a known velocity of sound
- Display brightness adjustable to suit ambient light conditions
- Low battery warning
- Metric / imperial switchable
- Deep-coat mode for coatings up to 20mm thick
- Secure, twist-to-lock probe connection (BNC).
|
Benefits of Cygnus Multiple Echo
- Measures remaining metal thickness on corroded and coated structures
- All measurements are error checked using 3 return echoes to give repeatable, reliable results
- Accepted by all major classification societies
- Greatly reduces inspection time and costs
- Echo strength indicator to aid measurement.
|
| Materials |
Sound velocities between 2000 m/s to
7000 m/s (0.059 - 0.31 in/microsec) - covers
virtually all common engineering materials |
| Measurement range in steel |
3 mm - 250 mm (0.110" - 9.995") with 2.25 MHz probe
2 mm - 150 mm (0.065" - 6.000") with 3.5 MHz probe
1 mm - 50 mm (0.045" - 4.000")with 5.0 MHz probe |
| Accuracy |
0.1 mm (0.005") when calibrated in
accordance with Cygnus Instruments
Calibration Procedures |
| Resolution |
0.1 mm or 0.05 mm
(0.005" or 0.002") (selectable) |
| Probes |
Single crystal soft-faced compression
6 mm (1/4") - 5 MHz
13 mm (1/2") - 2.25, 3.5 or 5 MHz
19 mm (3/4") - 2.25 MHz
(Lower frequency probes offer better
penetration on heavy corrosion/coatings) |
| Protection |
IP65 & IP67 |
| Warranty |
3 years on Gauge, 6 months on probes |
|

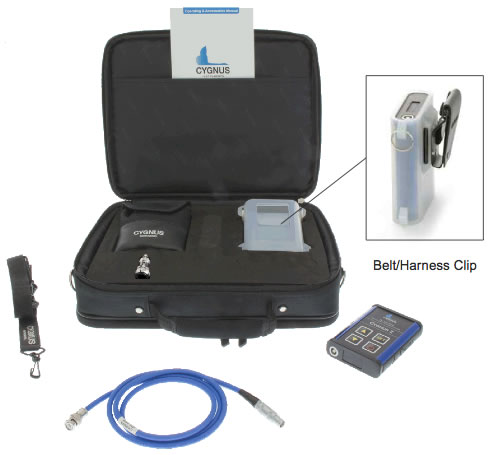

Cygnus 2 Hands Free Kit Contents
Instrument, 2.25 MHz x 13 mm (1/2") diameter probe, spare
membranes, steel test block, membrane couplant, ultrasonic couplant,
accessory pouch, protective silicone sleeve with belt/harness clip, neck
strap, operation manual, blue high flex probe cable and carry case
 |
