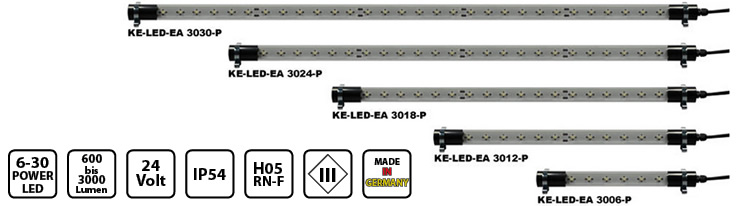

Kira Leuchten LED Strip lights - IP54

KE-LED-EA 3030-P / 30 POWER LEDs
KE-LED-EA 3024-P / 24 POWER LEDs
KE-LED-EA 3018-P / 18 POWER LEDs
KE-LED-EA 3012-P / 12 POWER LEDs
KE-LED-EA 3006-P / 6 POWER LEDs

LED built-in and surface mounted lamp with up to 30 POWER LED. Due to the modular construction available
in different length.

Illuminant: 6 / 12 / 18 / 24 respectively 30 POWER LED / 6500K
Protection tube: Plexiglas, crystal clear, 30mm Ø
Optional available with diffusor foil (only for model 3006 / 3012 / 3018)
End caps: ABS, black
Fixation: incl. 2 fixing clamps made of spring steel
Protection category: IP54
Protection class: III
Cable: 5m H05RN-F 2x1,00mm²
Voltage: 24V
Special models - longer cable, cable type, plug etc. on request.

Strip light Specifictaions
Illuminant:	POWER LED with 6, 12, 18, 24, 30 or 36 modules / 6500 Kelvin
Lumen:	3006: 600 Lm 3012: 1200 Lm 3018: 1800 Lm 3024: 2400 Lm 3030: 3000 Lm
Voltage:	24V DC
Protection tube:	Plexiglas, 30mm Ø
Fixing clamp:	2 fixing clamps
Cable:	5m H05RN-F 2 x 1,00 mm² (other length on request)
Plug:	without
Protection category:	IP54
Protection class:	III
Identification:	CE
Length of the lamp:	3006: 325mm 3012: 540mm 3018: 755mm 3024: 970mm 3030: 1185mm
