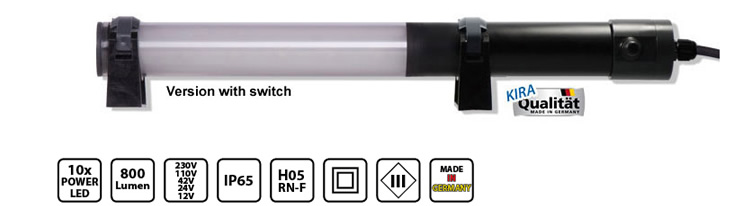

KE-LED 4010 PH/B, LED Surface Mounted Lamp

LED built-in and surface mounted lamp for the integration in machines, vehicles and all kind of electric devices.
Dazzle-free light based on integrated diffusor foil. Optional with or without switch available.

Illuminant: 10 POWER LED / 6500K
Protection tube: PMMA, impact resistant, 40mm Ø
Drain plug: hard-PVC, gray
Fixation: incl. 2 fixing clamps made of plastic
Protection category: IP65
Protection class: II / III
Cable: 5m H05RN-F 2x1,00mm²
Voltage: 230V / 110V / 42V / 24V / 12V
*(12V version with max. 9 LED module available --> KE-LED-EA 4009-P/12-HB)
Special models - longer cable, cable type, plug etc. on request.

Specs for KE-LED-EA 4006-P/HB & KE-LED-EA 4010-P/HB
Illuminant:	10 POWER LEDs (12V Version only 9 POWER LEDs) / 6500 Kelvin
Lumen:	ca. 800 Lm
Voltage /Ampere Version 4010:	230V/0,075 \| 110V/0,075 \| 42V/0,170 \| 24V/0,330 \| 12V/0,330
Protection tube:	PMMA, 40mm Ø
Fixing clamps:	2 fixing clamps
Cable:	5m H05RN-F 2 x 1,00 mm²
Plug:	contour plug (only 230V version)
Protection category:	IP65
Protection class:	II (bzw. III)
Identification:	CE
