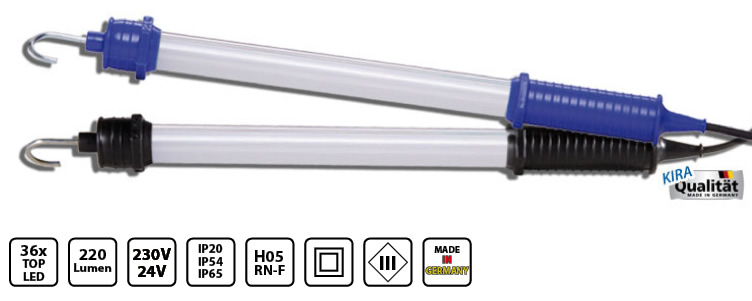

KE-LED 3036 Inspection Lamp
KE LED 3036

LED hand lamp, long structural shape. Dazzle-free light based on special prismatic-shaped protection tube.

  • Illuminant: 36 TOP LED (SMD-construction)
  • Protection tube: polycarbonate, shock-resistant, 30mm Ø
  • Handle / end cap: PVC, black (optional available in the color blue)
  • Metal hook: yes, rotatable
  • Protection category: IP20 /  IP54 (optional IP65 - on request)
  • Protection class: II respectively III
  • Cable 230V: 5m H05RN-F 2x0,75mm² | Cable 24V: 5m H05RN-F 2x1,00mm²
  • Voltage: 230V / 24V
  • Special models - longer cable, cable type, plug etc. on request.
Technical Data KE-LED 3036
Illuminant: 36 TOP LEDs (SMD version)
Lumen: ca. 220 Lm
Voltage/Ampere:

230V/0,040 | 24V/0,180
Protection tube: Polycarbonate, 30mm Ø
Suspension hook: rotatable hook made out of metal
Cable:

230V version: 5m H05RN-F 2 x 0,75 mm²
24V version: 5m H05RN-F 2 x 1,00 mm²
Plug: Euro plug (only 230V version)
Protection category: 230V version: IP20
24V version: IP54
Protection class
 II (or III)
Identification: CE
Length of the light: 525 mm
