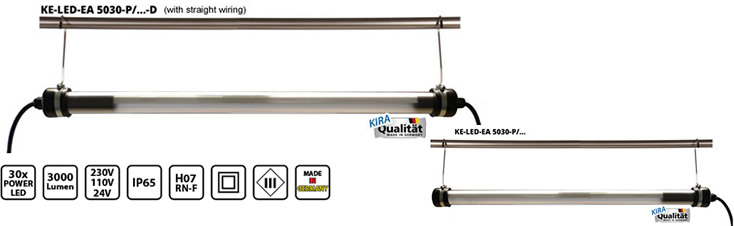

KE LED EA 5030, Suspended LED Strip Light

KE-LED-EA 5030-P
(Standard version with suspension hooks - IP65)
KE-LED-EA 5030-P-D
(with suspension hook and straight wiring - IP65)

LED built-in and surface mounted lamp with 30 POWER LED. Optional by means of through-wiring ideal applicable as line illumination. Homogeneous and dazzle-free light based on integrated diffusor foil.

Illuminant: 30 POWER LED / 6500K, with integrated diffusor foil
Protection tube: polycarbonate, shock-resistant, 50mm Ø
End cap: PVC, black
Fixation: incl. 2 metal suspension hook
(optional also with fixing clamps available)
Protection category: IP65
Protection class: II / III
Cable KE-LED-EA 5030-P: 5m H07RN-F 2x1,00mm²
Cable KE-LED-EA 5030-P/...-D: input 5m H07RN-F 2x1,50mm² | output 0,5m H07RN-F 2x1,50mm²
Voltage: 230V / 110V / 24V
Special models - longer cable, cable type, plug etc. on request.

KE-LED-EA 5030-P \| KE-LED-EA 5030-P/...-D
Iluminant:	30 x POWER LED / 6500 Kelvin
Lumen:	ca. 3000 Lm
Voltage:	230V \| 110V \| 24V
Protection tube:	Polycarbonate, 50mm Ø
Fixing clamps:	2 suspension hooks made out of metal
Cable 5030-P:	5m H05RN-F 2 x 1,00 mm²
Cable 5030-P/..-D:	Input 5m H07RN-F 2 x 1,50 mm² Output 0,5m H07RN-F 2 x 1,50 mm²
Plug:	5030-P: contour plug (only 230V version) 5030-P/..-D: Schuko plug - socket
Protection category:	IP65
Protection class:	II (bzw. III)
Identification:	CE
Length of the lamp:	see under dimensional drawing
